- Place of Origin: china
- Brand Name: LongTech
- Model Number: T8
Product Features:
1, Energy saving: Ultra low power, and saves more than 80% energy than traditional incandescent lamp.
2, Environmental protection: No radiation, no mercury or lead, completely recyclable.
3, Super long life span: 50, 000~100, 000 hours, life is 10 times longer than traditional lamp.
4, High quality illuminant: Using highlight SMD3014 illuminant, each lamp bead attains 10-11LM.
5, Drives: Isolation constant-current supply driver with high efficiency and high-low pressure to enhance product performance entirely.
6, Autonomous mold opening to make aluminum alloy extrusion shell, simple and beautiful looking, scientific and reasonable heat dissipation structure. Scientific light distribution, uniform illumination. Safety in use and easy installation.
Notice for installation:
1, Before installation, cut off power to prevent electric shock, and avoid touching the surface of light while working.
2, The light should be avoid installed in place of heat, hot steam and corrosive gas, so as not to affect their working life.
3, Before installation, make sure that installation position can withstand 10 times the weight of the product.
4, For indoor use only, please pay attention to the waterproofing when using outside.
5, Please install on flat places with no vibration, no rocking and no fire hazard, pay attention to avoid dropping down, colliding and knocking.

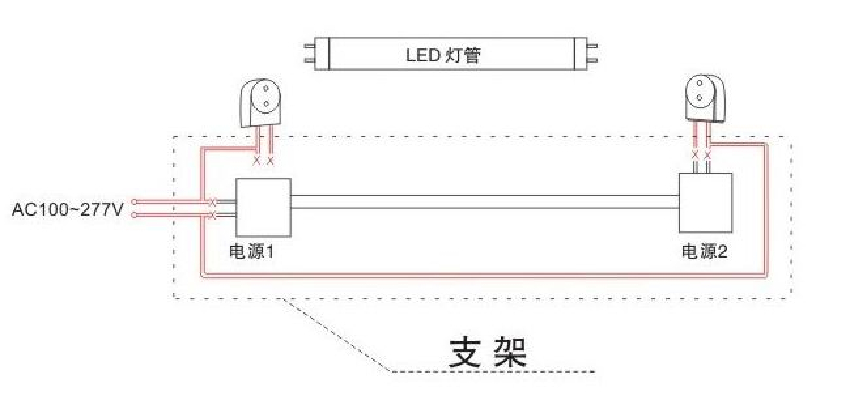

Replace traditional fluorescent wiring diagram
1, Please pay attention that when use Tube LED T8 to replace traditional fluorescent, you need to take away the starter, then you can install it into the bracket directly.
2, Removing ballast in the bracket saves much more energy.
3, Jioning the cathode and anode power line to tubes at each side to light up, if you collect up two lines at one side, there will be a short circuit.
- Place of Origin: china
- Brand Name: LongTech
- Model Number: T8
Model | Power | LED | Lumen | Illumination | Size |
LT-T8-156pcs-SMD3014-9W | 9W | 156pcs SMD3014 | 776-865lm | 155lux/m | Diameter26mm*length600mm |
LT-T8-216pcs-SMD3014-12W | 12W | 216pcs SMD3014 | 1000-1100lm | 220lux/m | Diameter26mm*length900mm |
LT-T8-288pcs-SMD3014-18W | 18W | 288pcs SMD3014 | 1650-1730lm | 330lux/m | Diameter26mm*length1200mm |
LT-T8-312pcs-SMD3014-22W | 22W | 312pcs SMD3014 | 2000-2100lm | 425lux/m | Diameter26mm*length1200mm |
LT-T8-384pcs-SMD3014-25W | 25W | 384pcs SMD3014 | 2350-2470lm | 530lux/m | Diameter26mm*length1500mm |
